Mercedes Sprinter WOLFBOX Rear Camera Mount - VS30 2019+
$29.99
Reliable shipping
Flexible returns

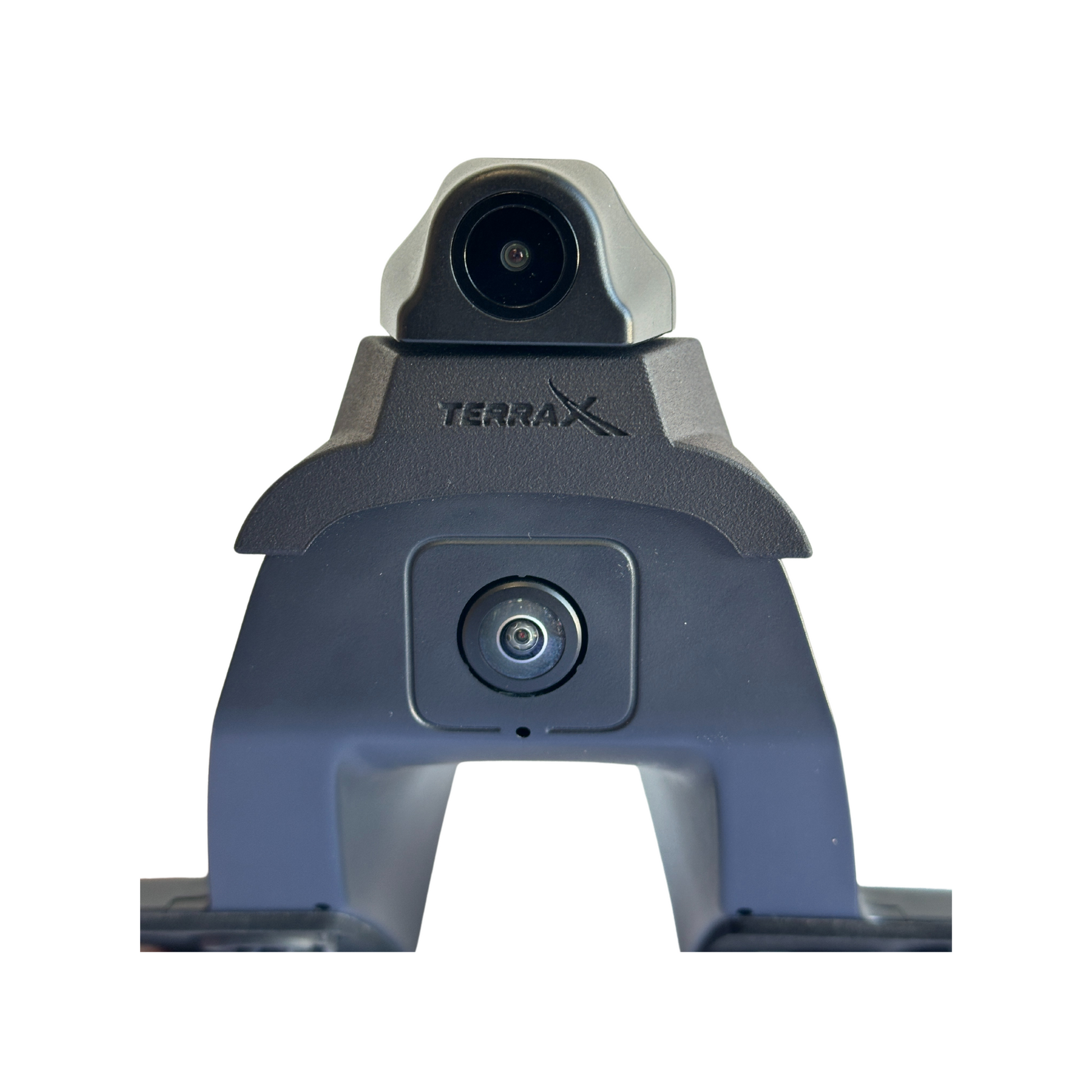

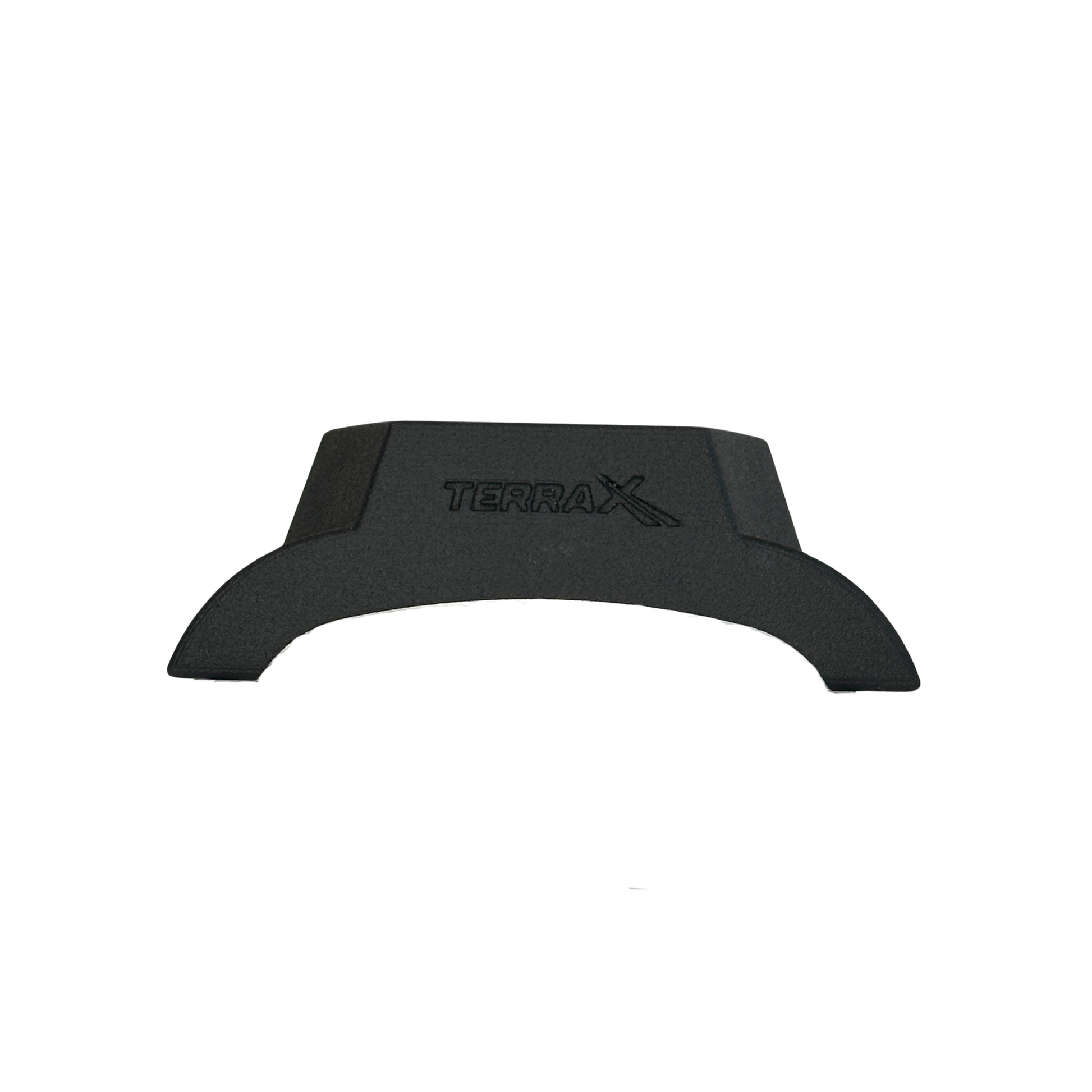

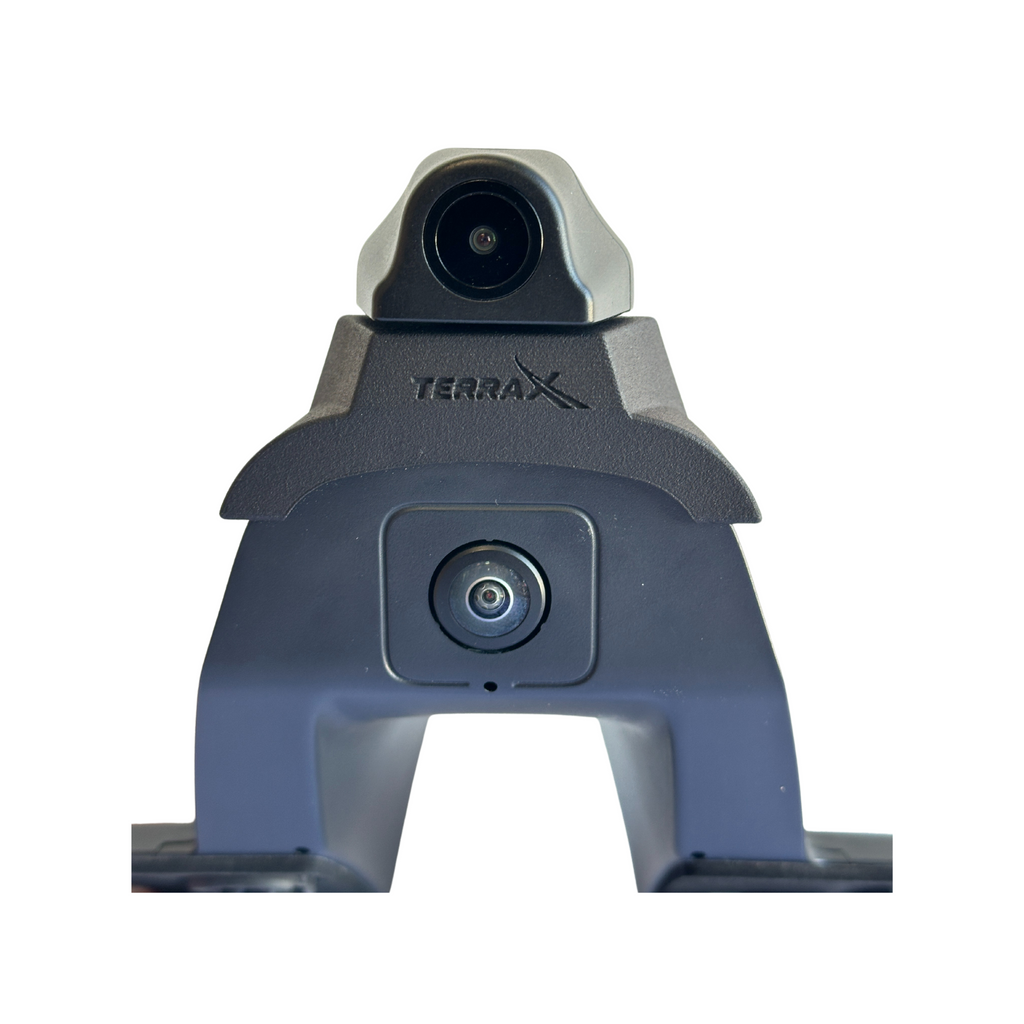

A tape-on nylon mount designed around the VS30 Sprinter and the WOLFBOX rear camera. No drilling into a rear door.
A rear camera on a van is the difference between reversing confidently and reversing hopefully, and a WOLFBOX mirror camera system is one of the more popular ways to get one. What it does not come with is a mount that fits a Sprinter rear door.
This one is designed specifically for the 2019-and-newer VS30 Sprinter. It is SLS printed in nylon 12 — a genuinely tough engineering plastic rather than a hobby-grade filament print — and it attaches with heavy duty mounting tape, so nothing gets drilled into the door.
What it is for
- Adding a WOLFBOX rear camera to a 2019-or-newer Mercedes Sprinter VS30.
- Any install where you do not want to drill the rear door.
- Replacing a generic bracket that does not sit right on the VS30 door.
Compatibility
| Vehicle | Mercedes-Benz Sprinter VS30, 2019 to present |
| Camera | WOLFBOX rear camera — sold separately |
| Attachment | Heavy duty mounting tape |
| Drilling required | None |
VS30 is the current-generation Sprinter body, from 2019 onward. If your Sprinter is a 2018 or earlier NCV3, this mount is not designed for it.
Specifications
| Material | SLS printed nylon 12 |
| Vehicle | Mercedes-Benz Sprinter VS30 (2019–present) |
| Camera | WOLFBOX — sold separately |
| Attachment | Heavy duty mounting tape |
What's included
- (1) SLS printed nylon 12 WOLFBOX rear camera mount
- Camera sold separately
Working with it
Adhesive mounts live or die on surface prep. Clean the mounting area with isopropyl alcohol, let it flash off completely, and apply the tape to a surface that is above about 60 °F. Tape applied to a cold, damp or waxed van door will let go on the first hot day.
Press firmly for a full thirty seconds and then leave it alone for 24 hours before hanging the camera or routing the cable under tension.
- Clean with isopropyl alcohol and let it dry fully. Do not use a wax-containing cleaner.
- Apply above roughly 60 °F. In winter, warm the panel first.
- Press for 30 seconds; leave 24 hours before loading it.
- Route the camera cable through an existing grommet where possible, with a drip loop.
Questions we get asked
Does it include the camera?
No. The WOLFBOX camera is sold separately. This is the mount only.
Will it fit a 2018 Sprinter?
No. It is designed for the VS30 body, 2019 to present. The earlier NCV3 rear door is a different shape.
Is nylon 12 strong enough for the outside of a van?
Yes. SLS-printed nylon 12 is an engineering-grade material used for functional production parts — it is tough, has good impact resistance, and handles UV and temperature swings far better than a typical FDM print.
Pairs well with
Sold and shipped by Campervan Parts R Us, the parts counter of Noke Van Co. — a working van conversion shop in Roanoke, Virginia. If you are unsure whether this fits your van, email us the year, model and wheelbase and we will check it against a build sheet before you order.
